Optical Spectrometer

OS

1 OS

The optical spectrometers have been developed for 600-1100 nm & 700-900 nm wavelength ranges. The developed spectrometers are based on Diffraction Grating and Linear Image Sensor. These spectrometers are compact, light weight, portable and cost effective. As there is no mechanical scanning through rotation of grating to capture the spectrum, it makes such spectrometers fast and wear free. The  spectrum  can  be  seen  in  graphical  format,  recorded  &  analysed on computer with User Interface Software. Optical spectrometers find numerous applications in various fields of science & technology. The spectrometers can be configured for other ranges & applications also.

OS

1 OS


SALIENT FEATURES

  • Measures the  ‘Spectral Composition of Light in terms of wavelengths & their relative intensities
  • Based on Diffraction Grating & Linear Image Sensor

SPECIFICATIONS

  • Range : In Visible & NIR Region (400-1100nm Wavelength)
  • UV is also possible with special coating
  • Integration time (minimum) : 1 msec
  • Resolution : 0.1nm - 5nm (depends upon specification of components)
  • Weight : 890 Gram (approx.)
  • Size : 145 mm x 115 mm x 55 mm
  • USB 2.0 Connectivity
  • Basic Software

APPLICATIONS

  • White Light Interferometry (Fiberoptic sensors, Thin film and OCT)
  • Color (Textile, Paint, Printing, Paper, Fruit, Wine, LED, Analytical Chemistry)
  • Laser measurement (Wavelength of tunable lasers)
  • Gemology (Natural and Artificial Stones)
  • Fluorescence (Biological, Biomedical, Plasma)
  • Solar measurement
OS

1 OS

A spectrometer is an instrument to determine the spectral composition (wavelength & intensity).  The spectrometer developed by BARC is compact, light weight, portable and cost effective. It is based on Diffraction Grating and Linear Array Detector (the Image Sensor). Unlike  conventional  spectrum  analyzers,  there  is  no mechanical  scanning  (through  rotation  of grating) to capture the spectrum. This makes it faster and wear free.

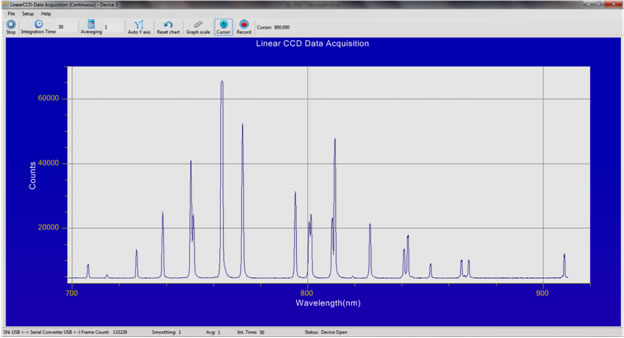

This spectrometer admits light through an optical fiber cable.  The output, consists of spectrum information as packets of digital data, is transmitted through an USB port to a PC or Laptop.  In PC,  the  spectrum  is  displayed  in  a graphical  format,  recorded  &  analysed using an User Interface Software. The spectrometers have been developed for 600-1100 nm & 700-900 nm wavelength ranges.  The spectrometers can be configured for other ranges & applications also.

SPECIFICATIONS

  • Range : In Visible & NIR (Near Infrared) Region, 400-1100nm Wavelength
  • UV is also possible with special coating
  • Integration time (minimum) : 1 msec
  • Resolution : 0.1nm - 5nm ( depends upon specification of components)
  • Weight : 890 Gram (approx.)
  • Size : 145 mm x 115 mm x 55 mm
  • USB 2.0 Connectivity
  • PC based User Interface

APPLICATIONS

  • White Light Interferometry (Fiberoptic sensors, Thin film and Optical Coherence Tomography)
  • Color identification (Textile, Paint, Printing, Paper, Fruit, Wine, LED, Analytical Chemistry)
  • Laser measurement (Wavelength of tunable lasers)
  • Gemology (Natural and Artificial Stones)
  • Fluorescence (Biological, Biomedical, Plasma)
  • Solar measurement

FACILITIES REQUIRED / INFRASTRUCTURE REQUIREMENT FOR COMMERCIAL PRODUCTION

  • Since this is Opto-electronic equipment it does not require large working space.
    ~500 Square Feet area may be more than adequate. A dust free dark room for optical assembly
  • Electronics fabrication and testing facilities and Software Development
  • Mechanical Fabrication: Milling Facility for optical bench
  • Light Sources (Mercury-Argon, Neon) with fiberoptic cable for calibration
  • Skilled Manpower in embedded systems, electronics, software and optics
  • Power requirement : 230V/ 5A

SR NO. Organization name Licensee Name Licensee Code ACQUIRED ON Valid Till Address City State Email Phone
01 M/S. NEW AGE INSTRUMENTS & MATERIALS PVT. LTD. TAPAN SARDA 30 28-07-2015 28-07-2022 12-15, Apna Enclave Shopping Complex Railway Road Gurgaon Haryana tapan@newagein.com
02 M/S. PRISMS INDIA PVT LTD V. JAYARAM 31 08-07-2015 08-07-2022 C-92, Pidic Mettupalayam Indi Estate Pondicherry Kurinji Nagar Tamil Nadu prisms@airtelmail.in 04132271289
SR NO. COUNTRY NAME PATENT NUMBER
No Data Found.
SR NO. NAME STANDARD NUMBER LOGO
No Data Found.

General License Fee : ₹ 300,000.00 (Three Lakh)

General Royalty : 0%
