Compact High Stability High voltage Power Supply (5kV/2mA)


  • NOTE: Facility for online Application for transfer of technology would be available soon...
HSHV Power Supply

1 HSHV Power Supply

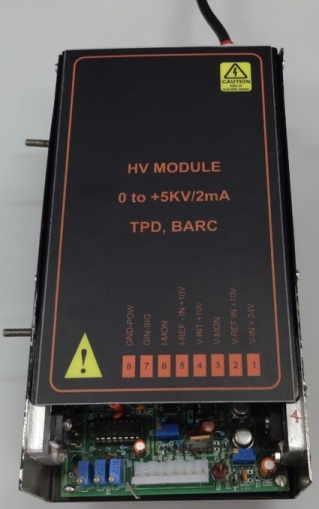

High stability, high voltage power supplies find numerous applications in analytical instruments. This module provides a 50ppm stable adjustable output of up to 5kV @ 2mA, with a low ripple content of 100mV (p-p).

This HV module can be used for ion acceleration, ion optics, channel electron multipliers, photo multipliers, electrostatic lens, energy analyzers and a lot of other analytical applications.


HSHV Power Supply

1 HSHV Power Supply

High stability, high voltage power supplies find numerous applications in analytical instruments.

This module provides a 50ppm stable adjustable output of up to 5kV @ 2mA, with a low ripple content of 100mV (p-p). The module can be configured for a positive or negative polarity output. This module is short circuit and arc protected for reliable and trouble free operation.

This HV module can be used for ion acceleration, ion optics, channel electron multipliers, photo multipliers, electrostatic lens, energy analyzers and a lot of other analytical applications.


HSHV Power Supply

1 HSHV Power Supply

BARC has developed a compact, high stability, high voltage module operating off 24V dc. In general, high stability, high voltage power supplies find numerous applications in analytical instruments. This HV module can be used for ion acceleration, ion optics, channel electron multipliers, photo multipliers, electrostatic lens, energy analyzers and a lot of other analytical applications. This module provides a 50ppm stable output of up to 5kV @ 2mA, with a low ripple content of 100mV (p-p). The module can be configured for a positive or negative polarity output.


The HV module operates on 24V/1A DC input and produces an adjustable output, voltage from 0 to 5kV with a maximum load current of 2mA.The module design is based on compound regulation technique wherein a linear regulator feeds power to a high frequency DC-DC converter (double ended flyback configuration) operating at around 50 kHz with a fixed duty cycle of 10%. High regulation is achieved by a high gain dc feedback closed loop circuit.


This module is protected against two common potentially disastrous faults; accidental shorts to ground and overload currents, for reliable and trouble free operation.



TECHNICAL SPECIFICATIONS

The detail specifications about the power supply are given below :

ParameterSpecifications
Input voltage24V DC ± 1V
Output voltage0 to +5kV correspond 0 to 10V ref. input
Line regulation0.001% for ±1V Input Change
Load regulation0.001% for 10% to 100% Load Change
Ripple< 100mV p-p at full load
Stability10 ppm (Short Term)
50 ppm (Long Term) 8 hours with 0.5 hour warm up
ProtectionShort Circuit with Self Recovery and arc Protected.
Dimensions of the HV module (L×W×H in cm)20cm×10cm×5cm



SR NO. Organization name Licensee Name Licensee Code ACQUIRED ON Valid Till Address City State Email Phone
01 M/S. THETA CONTROLS RAJA MAHBUBANI 35 18-10-2017 18-10-2024 1, Electronic Estate, Satara Road Pune Maharashtra sales@thetacontrols.com 02030484100
SR NO. COUNTRY NAME PATENT NUMBER
No Data Found.
SR NO. NAME STANDARD NUMBER LOGO
No Data Found.

General License Fee : ₹ 75,000.00 (Seventy Five Thousand)

General Royalty : 0%
