1. Infrared radiation based body temperature measurement.
2. Non-contact and non-invasive in nature.
3. Measurement range: 90°F to 110°F
4. Optical proximity switch based object sensing.
5. Measurement distance: 2cm to 15 cm.
6. Measurement time: About 1 sec.
7. Indication of Measurement DONE-> beep sound.
8. Indication for T<98.6°F-> Green LED.
9. Indication of fever: T >98.6°F->Red LED and 5 times beep.
10. Arduino microcontroller based circuit.
11. 2.8" TFT Display.
12. Mains operated,powered by 9V,1A adaptor.
13. USB interface for data logging.
14. Dimension: 200 mm x 120 mm x 75 mm

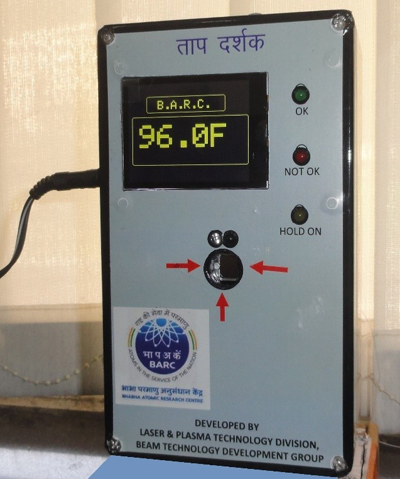

"Taapdarshak" is a non-contact infra-red radiation based automatic temperature measuring instrument which can measure skin temperature of a person who is in close proximity of 15 cm from the instrument.

A thermopile detector in the instrument senses the infrared radiation emitted by human body and converts it into proportional voltage. The inbuilt thermistor in the detector compensates for ambient temperature variation. Theoutput voltage of detector is read by a microcontroller based circuit which converts it into corresponding temperature.An optical proximity sensor driven by microcontroller detects the presence of a person. Arduino AtMega 2560 microcontroller is used for ease of programming and multiple interface availability. User interface is provided in the form of Graphical LCD display for temperature value and Green/Red LEDs to indicate the measured temperature is below or above 98.6°F. With each measurement a buzzer sound is also alarmed to indicate completion of measurement. While only single beep sound is played if the temperature is below 98.6°F along with glow of Green LED, there is 5 beep sound for temperature above 98.6°F and glow of RED LED.

This instrument can be used for thermal screening of employees entering their place of work. It has the advantage of automatically measuring the temperature without human intervention thus help in maintaining social distance between security person and employees and fulfill one of the requirement of thermal screening of employees in COVID-19 situation while entering the organization.

It requires below mentioned machine and rooms with controlled temperature (23 ± 2 °C) and relative humidity (< 40 %):

1. Measurement range: 90°F to 110°F
2. Optical proximity switch based object sensing
3. Measurement distance: 2cm to 15 cm
4. Measurement time: About 1 sec
5. Indication of Measurement DONE -> beep sound
6. Indication for Temperature< 98.6 °F-> Green LED
7. Indication of fever: Temperature> 98.6 °F->Red LED and 5 times beep
8. Arduino microcontroller based circuit
9. 2.8" TFT Display
10. Mains operated, powered by 9V DC,1A adaptor.
11. USB interface for data logging
12. Dimension: 200 mm x 120 mm x 75 mm
