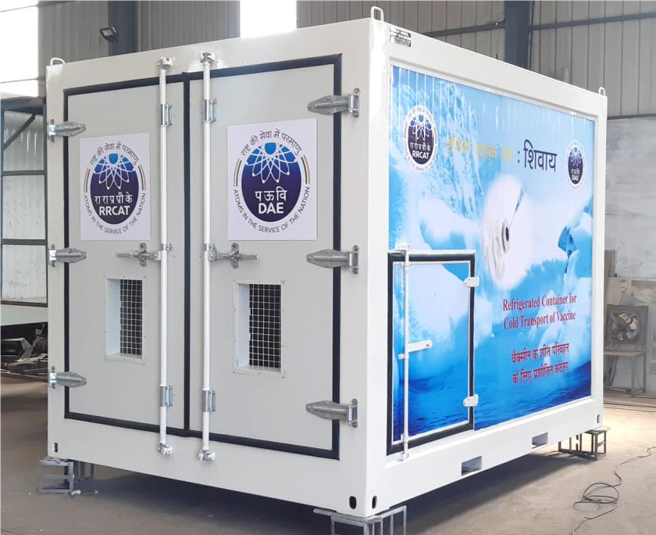

Liquid Nitrogen Based Transportable Refrigeration System for Vaccine - Sheetal Vahak Yantra (SHIVAY-V)


SHIVAY-V

SHIVAY-V

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY-V) for transportation pharmaceutical products (including vaccines) at any temperature, up-to minus 70 °C has been developed. This container has a cargo handling volume of 266cubic feet, and can hold 2 standard pallets. This transportation can be carried out with this refrigerated container mounted on any truck or it can be built on the chassis of any vehicle. It is refrigerated by using liquid nitrogen. This technology has been tailor made for Indian conditions and is aimed at solving issues like high maintenance when travelling on rough roads. The system does not use diesel or CFC for refrigeration and hence is 100% eco-friendly. It generates no pollutant gases or sound, and is economical to use.

SHIVAY-V

1 SHIVAY-V

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY-V) for transportation pharmaceutical products (including vaccines) at any temperature, up-to minus 70 °C has been developed. This container has a cargo handling volume of 266cubic feet, and can hold 2 standard pallets. This transportation can be carried out with this refrigerated container mounted on any truck or it can be built on the chassis of any vehicle. It is refrigerated by using liquid nitrogen. This technology has been tailor made for Indian conditions and is aimed at solving issues like high maintenance when travelling on rough roads. The system does not use diesel or CFC for refrigeration and hence is 100% eco-friendly. It generates no pollutant gases or sound, and is economical to use.

ADVANTAGES

  • The system performs the dual job of vaccine storage and transport and thus is a unique product not available in pharmaceutical cold chain.

  • It can store and transport vaccines for about 4 days at 2° to 8° C without refilling of liquid nitrogen in its tank. (ambient temperature is 37°C as highest in the day).

  • Container can be built to any size.

  • During transport system needs no input from vehicle or the driver. Same system can be loaded and transferred on to any carrier like train or truck and is thus, a truly multi modal system. It can also be rested outside hospital building and it keeps working.

  • Only two simple moving parts are used so minimum maintenance is expected.

  • LN2 is highly eco-friendly. It is a by-product of oxygen plants and Spare capacity exists in the country.

APPLICATIONS

  • Storage and transportation of Vaccines up-to minus 70 degree centigrade.
SHIVAY-V

1 SHIVAY-V

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY-V) for transportation pharmaceutical products (including vaccines) at any temperature, up-to minus 70 °C has been developed. This container has a cargo handling volume of 266cubic feet, and can hold 2 standard pallets. This transportation can be carried out with this refrigerated container mounted on any truck or it can be built on the chassis of any vehicle. It is refrigerated by using liquid nitrogen. This technology has been tailor made for Indian conditions and is aimed at solving issues like high maintenance when travelling on rough roads. The system does not use diesel or CFC for refrigeration and hence is 100% eco-friendly. It generates no pollutant gases or sound, and is economical to use.

ADVANTAGES

  • The system performs the dual job of vaccine storage and transport and thus is a unique product not available in pharmaceutical cold chain.
  • It can store and transport vaccines for about 4 days at 2° to 8° C without refilling of liquid nitrogen in its tank. (ambient temperature is 37°C as highest in a day)
  • Container can be built to any size.
  • During transport system needs no input from vehicle or the driver. Same system can be loaded and transferred on any carrier like train or truck and is thus, a truly multi modal system. It can also be rested outside hospital building and it keeps working.
  • Only two simple moving parts are used so minimum maintenance is expected.
  • LN2 is highly eco-friendly. It is a by-product of oxygen plants and Spare capacity exists in the country.

APPLICATION

  • Storage and transport (both) for vaccines up-to minus 70 degree centigrade

SPECIFICATIONS OF THE SYSTEM

S.NoSpecificationValue
1Size of Container10 ft X 8 ft X 8ft
2Temperature Range+8 degree centigrade to -70 degree centigrade
3Temperature Uniformity in the chamber± 1.5 °C
4Temperature stability± 1.5 °C
5LN2 storage tank capacity485ltrs
6Running Capacity with one filling of LN2.~4 days when cargo is maintained
At 4°C (ambient is 37°C highest in a day
7Loading Capacity266 cubic feet (good for 2 pallets).

RAW MATERIALS

  • Raw materials are easily available in the local market.

INFRASTRUCTURE

  • A shop floor 150 ft X 100ft and Small electronic lab to test control system are required along with Sheet Bending machine, Welding machine, Painting system, Liquid Nitrogen storage cylinder, Liquid nitrogen Transfer system, Leak Testing setup etc.

MANPOWER

  • Three technicians (Including One welder and two fitters) & two engineers (One mechanical and one electronics) are sufficient to start production.
SR NO. Organization name Licensee Name Licensee Code ACQUIRED ON Valid Till Address City State Email Phone
01 TATA MOTORS LIMITED Rajeev Dave 351 16-06-2022 - Tata Motors Ltd ERC CVBU, PDO Building 2nd Floor, Near Lokmanya Hospital Old Mumbai Pune Road Chinchwad- Pune 411033 Pune Maharashtra rajeev.dave@tatamotors.com 02066133282
SR NO. COUNTRY NAME PATENT NUMBER
No Data Found.
SR NO. NAME STANDARD NUMBER LOGO
No Data Found.

General License Fee : ₹ 920,000.00 (Nine Lakh Twenty Thousand)

General Royalty : 0%
