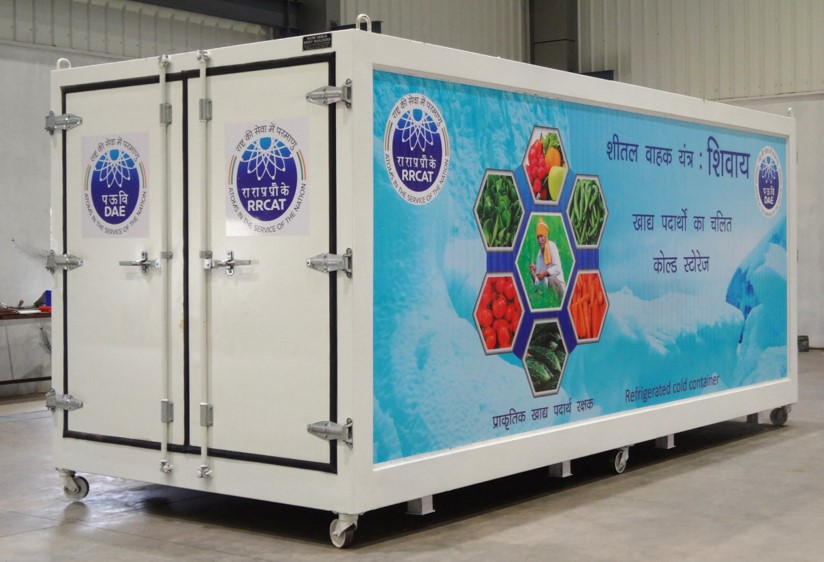

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY)


SHIVAY

SHIVAY

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY) intended for transportation of fruits vegetables & Pharmaceuticals products caters up-to requirement of minus 40 °C temperatures. This transportation can be carried out in a specially developed refrigerated container that can be mounted on any truck or can be built on the chassis of any vehicle. It is refrigerated by using liquid nitrogen. This technology has been tailor made for Indian conditions and is aimed at solving issues like high maintenance due to rough roads, which are faced by conventional refrigerated trucks (reefers) operators. The system does not use diesel for refrigeration, is 100% eco-friendly as it generates no pollutant gases or sound and is economical to use.

SHIVAY

1 SHIVAY

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY) intended for transportation of fruits vegetables & Pharmaceuticals products caters up-to requirement of minus 40 °C temperatures. This transportation can be carried out in a specially developed refrigerated container that can be mounted on any truck or can be built on the chassis of any vehicle. It is refrigerated by using liquid nitrogen. This technology has been tailor made for Indian conditions and is aimed at solving issues like high maintenance due to rough roads, which are faced by conventional refrigerated trucks (reefers) operators. The system does not use diesel for refrigeration, is 100% eco-friendly as it generates no pollutant gases or sound and is economical to use.

ADVANTAGES

  • The cost of liquid nitrogen consumed is lower than cost of diesel consumed by 20-25%.

  • This standalone system needs no input from vehicle or the driver. Same system can be loaded and transferred on any carrier like train or truck. Thus it is truly multi modal.

  • Only two simple moving parts are used so minimum maintenance is expected.

  • Container can be built to any size.

  • LN2 is 100% eco-friendly. It is a by-product of oxygen plants.

  • Can travel 1200-1300 kms or 40 hrs, without refilling of liquid nitrogen in its tank.

APPLICATIONS

  • Fruits & Vegetable and products up-to minus 40 degree centigrade.

  • Pharmaceuticals Products.
SHIVAY

1 SHIVAY

Liquid Nitrogen Based Transportable Refrigeration System- Sheetal Vahak Yantra (SHIVAY) intended for transportation of fruits vegetables & Pharmaceuticals products caters up-to requirement of minus 40 °C temperatures. This transportation can be carried out in a specially developed refrigerated container that can be mounted on any truck or can be built on the chassis of any vehicle. It is refrigerated by using liquid nitrogen. This technology has been tailor made for Indian conditions and is aimed at solving issues like high maintenance due to rough roads, which are faced by conventional refrigerated trucks (reefers) operators. The system does not use diesel for refrigeration, is 100% eco-friendly as it generates no pollutant gases or sound and is economical to use.

ADVANTAGES

  • The cost of liquid nitrogen consumed is lower than cost of diesel consumed by 20-25%.
  • This standalone system needs no input from vehicle or the driver. Same system can be loaded and transferred on any carrier like train or truck. Thus it is truly multi modal
  • Only two simple moving parts are used so minimum maintenance is expected.
  • Container can be built to any size.
  • LN2 is 100% eco-friendly. It is a by-product of oxygen plants.
  • Can travel 1200-1300 kms or 40 hrs, without refilling of liquid nitrogen in its tank.

APPLICATION

  • Fruits & Vegetable and products up-to minus 40 degree centigrade
  • Pharmaceuticals Products.

SPECIFICATIONS OF THE SYSTEM

S.NoSpecificationValue
1Size of Container20 ft X 8 ft X 8ft
2Other possible sizes14ft X 7ft X 7 ft (other sizes can be evolved based on requirements).
3Temperature Range-40 °C to + 20 °C (trials are on to extend the range of temperature below -40 °C)
4Temperature Uniformity in the chamber± 1.5 °C
5Temperature stability± 1.5 °C
6LN2 storage tank capacity485ltrs
7Running Capacity with one filling of LN21200-1300kms
8Loading Capacity6-7 Tons (depending on the item)

RAW MATERIALS

  • Raw materials are easily available in the local market.

INFRASTRUCTURE

  • A shop floor 150 ft X 100ft and Small electronic lab to test control system are required along with Sheet Bending machine, Welding machine, Painting system, Liquid Nitrogen storage cylinder, Liquid nitrogen Transfer system, Leak Testing setup.

MANPOWER

  • Three technicians (Including One welder and two fitters) & two engineers (One mechanical and one electronics) are sufficient to start production.
SR NO. Organization name Licensee Name Licensee Code ACQUIRED ON Valid Till Address City State Email Phone
01 TATA MOTORS LIMITED Rajeev Dave 351 16-06-2022 - Tata Motors Ltd ERC CVBU, PDO Building 2nd Floor, Near Lokmanya Hospital Old Mumbai Pune Road Chinchwad- Pune 411033 Pune Maharashtra rajeev.dave@tatamotors.com 02066133282
02 Furmech Engineers (Indore) Ltd. Sanjay Kumar Mittal 619 07-02-2023 06-02-2028 Plot.No. 3 sector D2 sanwer road Indore (M.P) Indore Madhya Pradesh furmechengineers@gmail.com 7312720535
SR NO. COUNTRY NAME PATENT NUMBER
No Data Found.
SR NO. NAME STANDARD NUMBER LOGO
No Data Found.

General License Fee : ₹ 920,000.00 (Nine Lakh Twenty Thousand)

General Royalty : 0%
